測量皮帶速度及旋轉設備速度。

　　60200轉速監控器是以微處理器為基礎的監控器，可與60-22型測速傳感器、60-24型測速傳感器或其它所有脈沖輸入裝置配套使用。同時具有單通道或雙通道報警輸出功能，能被編程用于低速、超速或零速報警。還具有4-20mA輸出功能。

設備描述

60-22型非接觸型轉速監測系統

　　60-22非接觸型轉速監控系統由60－200轉速監測器配合60－22型接近傳感器使用，以監測運轉設備的轉速?？筛鶕?jù)用戶需要選用單通道或雙通道監測器。6022型接近傳感器配有LED用以指示脈沖輸出，便于系統安裝及維護，可選用高速傳感器(20-5000RPM)或低速傳感器(1-60RPM)，所有系統包括20英寸電纜和傳感器固定支架。低速系統包括30個孔的目標盤和固定支架。

60-24型軸驅動型型轉速監測系統

　　60-24軸驅動型轉速監測系統由60－200轉速監測器配合60－24型軸驅動型傳感器使用，以監測運轉設備的轉速。該系統可選用單通道或雙通道運行監控器，高速傳感器(15-2000RPM)或低速傳感器(0.25-70RPM)，低速傳感器在軸轉速非常低的條件下(小于1RPM)也能工作。

徐州拉姆齊  60－200/60-22H-1 轉速監測系統

Ramsey Series 60-200 Motion Monitoring Systems offer a choice of versatile and reliable packages for monitoring underspeed, overspeed and zero speed conditions on various machinery and systems by sensing the speed variations of rotating parts

Customers can choose from either mechanically coupled (shaft-driven) or non-contacting proximity type sensors, depending on their particular application requirements and design preferences.  Either type of sensor can then be tied to the Ramsey 60-200 programmable motion monitor.

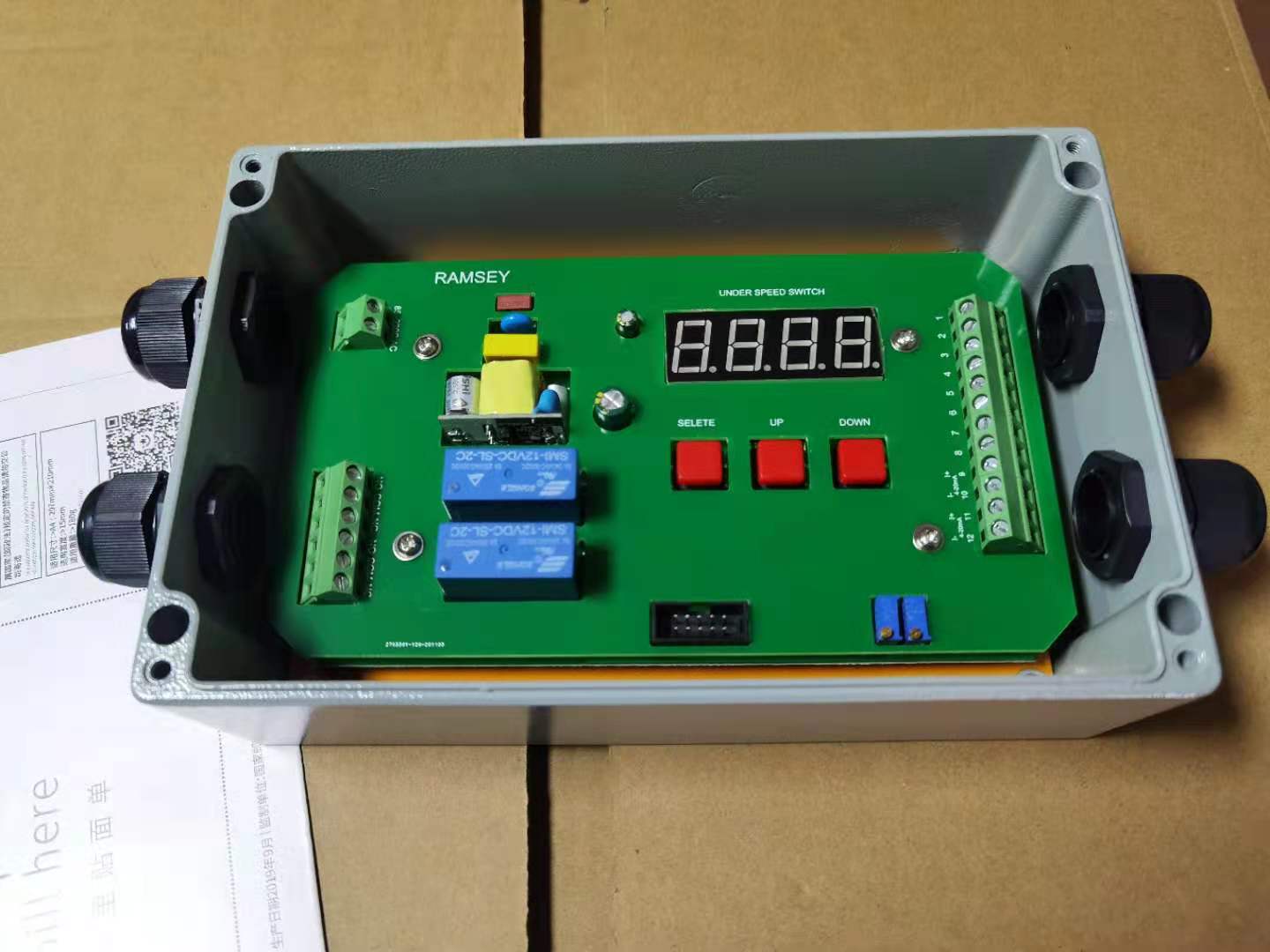

Ramsey Model 60-200 Control

The Ramsey 60-200 Programmable Motion Monitor is a versatile microprocessor-based controller that can be used with any Ramsey sensors, or in some cases, as the control device matched with compatible pulse output sensors from other sources.

Programmable Control Features

Start-Up Delay:  0-99 seconds

Alarm Setpoint(s): 0-160%

Alarm Delay: 0-99 seconds

Restart Mode: Power Up, Remote Relay Input

Begin Start-Up Delay: Power Up, First Pulse

Alarm Reset:  Manual (Latched), Automatic
