60-23P型欠速開關是一種費用低、可靠性強、對軸轉速及其它旋轉裝置簡單通用的監測裝置。欠速開關可應用于皮帶機的打滑或超速檢測。

欠速開關初放置在防風雨的密封、抗腐蝕外殼內，允許暴露在惡劣環境中。

設備描述

　非接觸接近探測器，壽命長、維護費用低

　兩螺栓固定，確保安裝簡單

　一體化結構，集中的控制裝置，設定或故障檢修簡單

　無運動部件、無磨損、安全壽命長

　報警/延遲-旋轉設備起動過程中尚未達到工作速度時，10秒鐘延遲報警

　延遲報警-當速度下降到可調節設置點以下時報警

技術參數

▲ 電壓：＆#8226;110/220VAC，+15%，

         ＆#8226;24VDC

▲ 頻率：17-62Hz

▲ 工作溫度范圍：-20攝氏度　到　+65攝氏度

▲ 報警觸點：2個（一個常開，一個常閉）

▲ 操作范圍：60/600脈沖/分

▲ 從傳感器到鐵類元件最遠：10mm

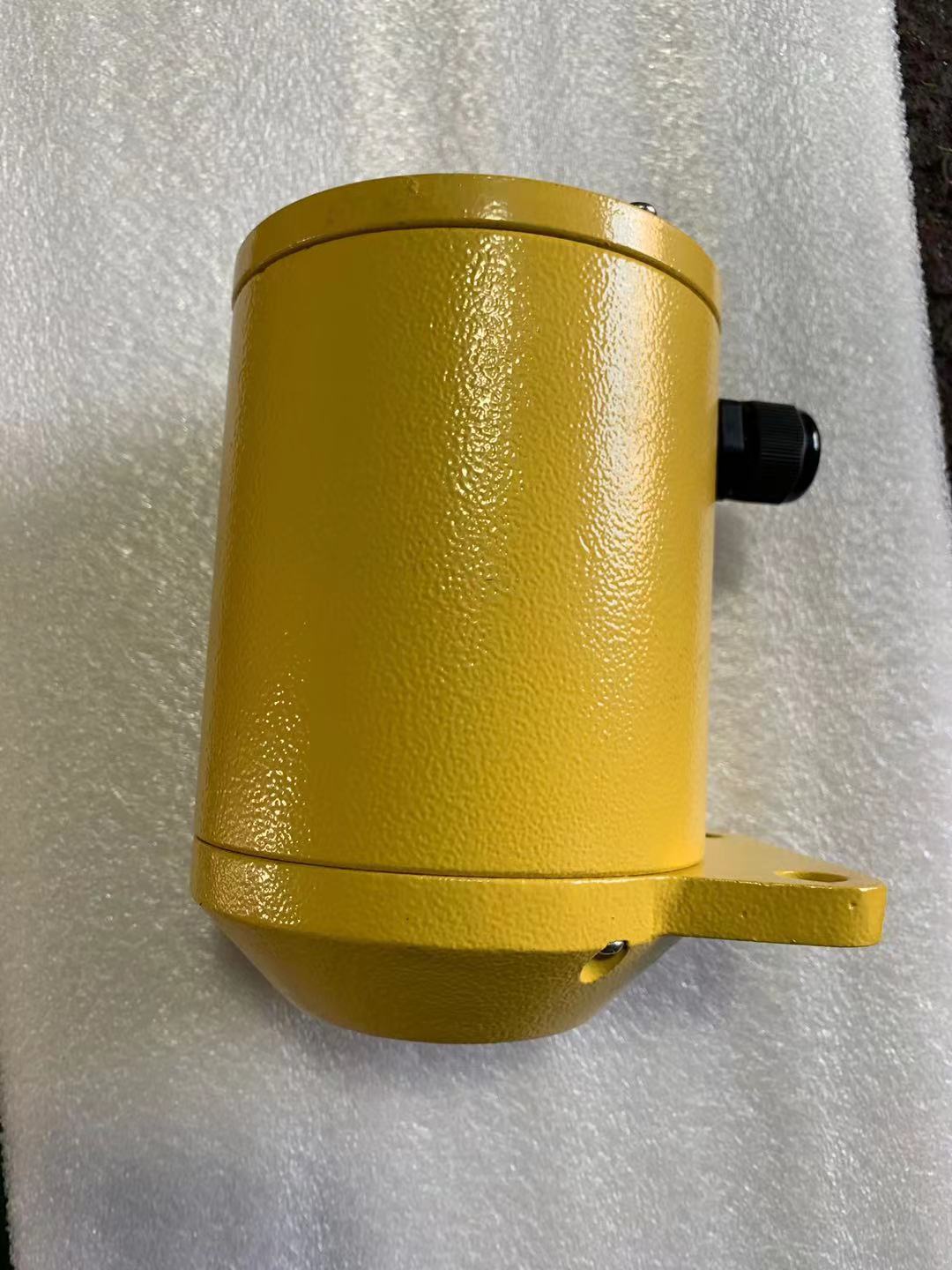

xuzhou ramsey 60－23P 速度開關

The Ramsey Pro-Line Model 60-23P and 60-23PX Under Speed Switches provide a low-cost, dependable, versatile and simple means of monitoring the rotational velocity of a shaft or other rotating equipment.

The Ramsey Model 60-23P Under Speed Switch features one-piece unitized construction. The electronics and output contacts are housed in the same unit with the detector. Only two (2) bolts are required to mount the unit. The non-contacting proximity-type detector has no moving parts. Once the simple installation is completed, the device is virtually maintenance-free.

Two 10-second time delays add important benefits to the package. The first delay prevents nuisance alarms. The second delay accommodates an alarm to normal condition after the under speed status has been corrected.

This switch is housed in a gasketed weather-tight polyammide/fiberglass enclosure (allowing exposure to harsh environments), or a cast aluminum NEMA 9 enclosure for explosion-proof applications.

The unit is ideally suited for a wide variety of industrial applications where the need to monitor for under speed or slippage conditions exist. It may be used on conveyor belts, bucket elevators and other types of rotating equipment.

Features

Non-contacting, proximity-type detector provides longer life and lower operating costs

Two-bolt mounting assures simple installation

Single piece construction with no separate control unit

Easy to set-up and/or troubleshooting

Rugged Housing: weather-tight, polyammide/fiberglass, sturdy, light weight

No moving parts and longer trouble-free life

Alarm/Delay: 10-second delay while rotating equipment reaches operating speed

Alarm to normal delay assures notification when speed drops below adjustable set-point
